Where two weathered avenues converge and offer a pathway

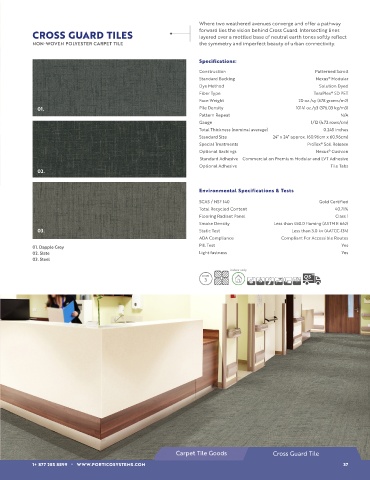

            CROSS GUARD TILES                                      forward lies the vision behind Cross Guard. Intersecting lines
                                                                   layered over a mottled base of neutral earth tones softly reflect
            NON-WOVEN POLYESTER CARPET TILE                        the symmetry and imperfect beauty of urban connectivity.


                                                                   Specifications:
                                                                   Construction                          Patterned Scroll
                                                                   Standard Backing                      Nexus  Modular
                                                                                                              ®
                                                                   Dye Method                              Solution Dyed
                                                                   Fiber Type                            TeraPlex  SD PET
                                                                                                               ®
                                                                   Face Weight                      20 oz./sy (678 grams/m2)
             01.                                                   Pile Density                    10141 oz./y3 (376.03 kg/m3)
                                                                   Pattern Repeat                                 N/A
                                                                   Gauge                                1/12 (4.72 rows/cm)
                                                                   Total Thickness (nominal average)        0.245 inches
                                                                   Standard Size           24” x 24” approx. (60.96cm x 60.96cm)
                                                                   Special Treatments                  ProTex  Soil Release
                                                                                                           ®
                                                                   Optional Backings                      Nexus  Cushion
                                                                                                              ®
                                                                   Standard Adhesive    Commercial on Premium Modular and LVT Adhesive
                                                                   Optional Adhesive                          Tile Tabs
             02.

                                                                   Environmental Specifications & Tests

                                                                   SCAS / NSF 140                          Gold Certified
                                                                   Total Recycled Content                       40.71%
                                                                   Flooring Radiant Panel                       Class 1
                                                                   Smoke Density            Less than 450.0 flaming (ASTM E 662)
             03.                                                   Static Test                   Less than 3.0 kv (AATCC-134)
                                                                   ADA Compliance             Compliant For Accessible Routes
            01. Dapple Grey                                        Pill Test                                      Yes
            02. Slate                                              Light fastness                                 Yes
            03. Steel
                                                                             indoor only
                                                                    zones                             QS
                                                                     3

































                                                           Carpet Tile Goods               Cross Guard Tile
