Natures View Style Rustique

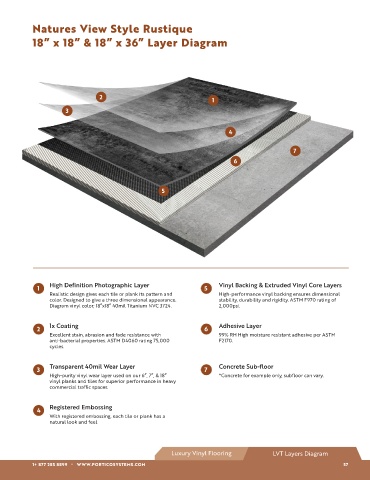

18” x 18” & 18” x 36” Layer Diagram

2 1

3

4

7
6

5

1 High Definition Photographic Layer 5 Vinyl Backing & Extruded Vinyl Core Layers
Realistic design gives each tile or plank its pattern and High-performance vinyl backing ensures dimensional
color. Designed to give a three dimensional appearance. stability, durability and rigidity. ASTM F970 rating of
Diagram vinyl color; 18”x18” 40mil Titanium NVC 3724. 2,000psi.

2 1x Coating 6 Adhesive Layer
Excellent stain, abrasion and fade resistance with 99% RH High moisture resistant adhesive per ASTM
anti-bacterial properties. ASTM D4060 rating 75,000 F2170.
cycles.

3 Transparent 40mil Wear Layer 7 Concrete Sub-floor
High-purity vinyl wear layer used on our 6”, 7”, & 18” *Concrete for example only, subfloor can vary.
vinyl planks and tiles for superior performance in heavy
commercial traffic spaces.

Registered Embossing
4
With registered embossing, each tile or plank has a
natural look and feel.

Luxury Vinyl Flooring LVT Layers Diagram
