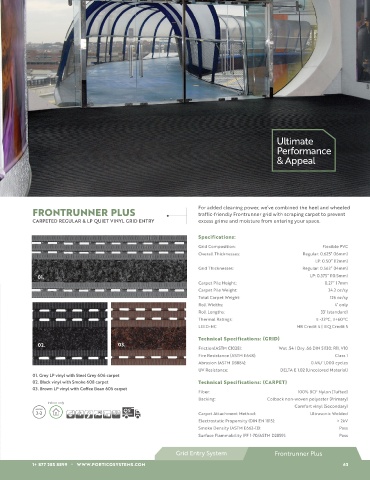

Page 63 - PS_Catalogue2024_020824
P. 63
Ultimate
Performance
& Appeal
FRONTRUNNER PLUS For added cleaning power, we’ve combined the heel and wheeled
traffic-friendly Frontrunner grid with scraping carpet to prevent
CARPETED REGULAR & LP QUIET VINYL GRID ENTRY excess grime and moisture from entering your space.
Specifications:
Grid Composition: Flexible PVC
Overall Thicknesses: Regular: 0.625” (16mm)
LP: 0.50” (12mm)
Grid Thicknesses: Regular: 0.563” (14mm)
01. LP: 0.375” (10.5mm)
Carpet Pile Height: 0.27” | 7mm
Carpet Pile Weight: 24.2 oz/sy
Total Carpet Weight: 126 oz/sy
Roll Widths: 4’ only
Roll Lengths: 33’ (standard)
Thermal Ratings: ≥ -23ºC, ≤+60ºC
LEED-NC MR Credit 4 | IEQ Credit 5
Technical Specifications: (GRID)
02. 03.
Friction(ASTM C1028): Wet .54 | Dry .66 DIN 51130: R11, V10
Fire Resistance (ASTM E648): Class 1
Abrasion (ASTM D3884): 0.4%/ 1,000 cycles
UV Resistance: DELTA E 1.02 (Uncolored Material)
01. Grey LP vinyl with Steel Grey 606 carpet
02. Black vinyl with Smoke 608 carpet Technical Specifications: (CARPET)
03. Brown LP vinyl with Coffee Bean 605 carpet
Fiber: 100% BCF Nylon (Tufted)
Backing: Colback non-woven polyester (Primary)
indoor only
zones QS Comfort vinyl (Secondary)
2•3 Carpet Attachment Method: Ultrasonic Welded
Electrostatic Propensity (DIN EN 1815): > 2kV
Smoke Density (ASTM E662-13): Pass
Surface Flammability (FF 1-70/ASTM D2859): Pass
Grid Entry System Frontrunner Plus
1+ 877 285 8899 • WWW.PORTICOSYSTEMS.COM 63
