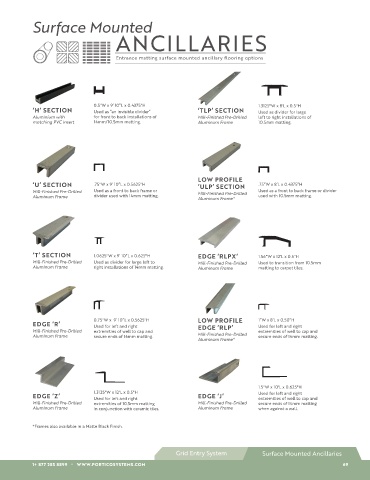

Surface Mounted

ANCILLARIES

Entrance matting surface mounted ancillary flooring options
Entr ance ma t ting sur f ace mounte d ancillar y flooring options

0.5"W x 9’ 10”L x 0.4375"H 1.3125"W x 8'L x 0.5"H
‘H’ SECTION Used as “an invisible divider” ‘TLP’ SECTION Used as divider for large
Aluminium with for front to back installations of Mill-Finished Pre-Drilled left to right installations of
matching PVC insert 14mm/10.5mm matting. Aluminum Frame 10.5mm matting.

LOW PROFILE
‘U’ SECTION .75"W x 9’ 10”L x 0.5625"H ‘ULP’ SECTION .75”W x 8’L x 0.4375”H
Mill-Finished Pre-Drilled Used as a front to back frame or Mill-Finished Pre-Drilled Used as a front to back frame or divider
Aluminum Frame divider used with 14mm matting. Aluminum Frame* used with 10.5mm matting.

‘T’ SECTION 1.0625"W x 9’ 10”L x 0.625"H EDGE ‘RLPX’ 1.56"W x 12'L x 0.5"H
Mill-Finished Pre-Drilled Used as divider for large left to Mill-Finished Pre-Drilled Used to transition from 10.5mm
Aluminum Frame right installations of 14mm matting. Aluminum Frame matting to carpet tiles.

0.75"W x 9’ 10”L x 0.5625"H LOW PROFILE 1”W x 8’L x 0.50”H
EDGE ‘R’ Used for left and right EDGE ‘RLP’ Used for left and right
Mill-Finished Pre-Drilled extremities of well to cap and extremities of well to cap and
Aluminum Frame secure ends of 14mm matting. Mill-Finished Pre-Drilled secure ends of 14mm matting.
Aluminum Frame*

1.5"W x 10'L x 0.625"H
EDGE ‘Z’ 1.3125"W x 12'L x 0.5"H EDGE ‘J’ Used for left and right
extremities of well to cap and
Used for left and right
Mill-Finished Pre-Drilled extremities of 10.5mm matting Mill-Finished Pre-Drilled secure ends of 14mm matting
Aluminum Frame in conjunction with ceramic tiles. Aluminum Frame when against a wall.
*Frames also available in a Matte Black Finish.

Grid Entry System Surface Mounted Ancillaries
