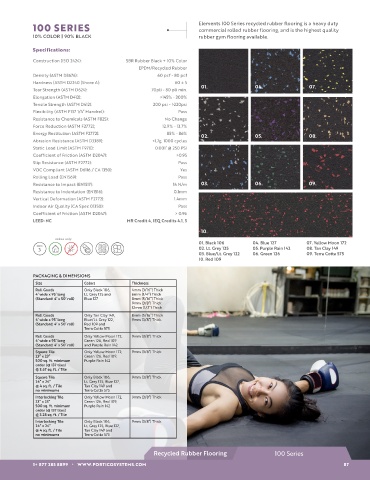

P. 87
100 SERIES Elements 100 Series recycled rubber flooring is a heavy duty
commercial rolled rubber flooring, and is the highest quality
10% COLOR | 90% BLACK rubber gym flooring available.
Specifications:
Construction (ISO 2424): SBR Rubber Black + 10% Color
EPDM/Recycled Rubber
Density (ASTM D3676): 60 pcf - 80 pcf
Hardness (ASTM D2240 (Shore A): 60 ± 5 01. 04. 07.
Tear Strength (ASTM D624): 70pli - 80 pli min.
Elongation (ASTM D412): >145% - 300%
Tensile Strength (ASTM D412): 200 psi - >220psi
Flexibility (ASTM F137 1/4” Mandrel): Pass
Resistance to Chemicals (ASTM F825): No Change
Force Reduction (ASTM F2772); 12.9% - 13.7%
Energy Restitution (ASTM F2772): 85% - 86% 02. 05. 08.
Abrasion Resistance (ASTM D3389): <1.7g. 1000 cycles
Static Load Limit (ASTM F970): 0.001’ @ 250 PSI
Coefficient of Friction (ASTM D2047): >0.95
Slip Resistance (ASTM F2772): Pass
VOC Compliant (ASTM D6116 / CA 1350): Yes
Rolling Load (EN1569): Pass
Resistance to Impact (EN1517): 14 N/m 03. 06. 09.
Resistance to Indentation (EN1516): 0.1mm
Vertical Deformation (ASTM F2772): 1.4mm
Indoor Air Quality (CA Spec 01350): Pass
Coefficient of Friction (ASTM D2047): > 0.96
LEED-NC MR Credit 4, IEQ Credits 4.1, 5
10.
indoor only
01. Black 106 04. Blue 127 07. Yellow Moon 172
zone
3 02. Lt. Grey 125 05. Purple Rain 142 08. Tan Clay 149
03. Blue/Lt. Grey 122 06. Green 126 09. Terra Cotta 575
10. Red 109
PACKAGING & DIMENSIONS
Size Colors Thickness
Roll Goods Only Black 106, 4mm (3/16”) Thick
4’ wide x 95’ long Lt. Grey 125 and 6mm (1/4”) Thick
(Standard: 4’ x 50’ roll) Blue 127 8mm (5/16”) Thick
9mm (3/8”) Thick
12mm (1/2”) Thick
Roll Goods Only Tan Clay 149, 8mm (5/16”) Thick
4’ wide x 95’ long Blue/Lt. Grey 122, 9mm (3/8”) Thick
(Standard: 4’ x 50’ roll) Red 109 and
Terra Cotta 575
Roll Goods Only Yellow Moon 172, 9mm (3/8”) Thick
4’ wide x 95’ long Green 126, Red 109
(Standard: 4’ x 50’ roll) and Purple Rain 142
Square Tile Only Yellow Moon 172, 9mm (3/8”) Thick
23” x 23” Green 126, Red 109,
500 sq. ft. minimum Purple Rain 142
order (@ 137 tiles)
@ 3.67 sq. ft. / Tile
Square Tile Only Black 106, 9mm (3/8”) Thick
24” x 24” Lt. Grey 125, Blue 127,
@ 4 sq. ft. / Tile Tan Clay 149 and
no minimums Terra Cotta 575
Interlocking Tile Only Yellow Moon 172, 9mm (3/8”) Thick
23” x 23” Green 126, Red 109,
500 sq. ft. minimum Purple Rain 142
order (@ 137 tiles)
@ 3.28 sq. ft. / Tile
Interlocking Tile Only Black 106, 9mm (3/8”) Thick
24” x 24” Lt. Grey 125, Blue 127,
@ 4 sq. ft. / Tile Tan Clay 149 and
no minimums Terra Cotta 575
Recycled Rubber Flooring 100 Series
