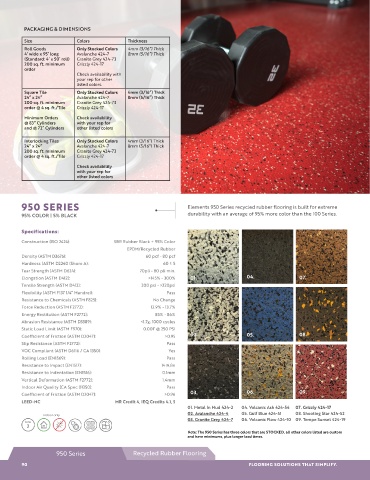

Page 90 - PS_Catalogue2024_020824
P. 90
PACKAGING & DIMENSIONS
Size Colors Thickness
Roll Goods Only Stocked Colors 4mm (3/16”) Thick
4’ wide x 95’ long Avalanche 424-7 8mm (5/16”) Thick
(Standard: 4’ x 50’ roll) Granite Grey 424-73
200 sq. ft. minimum Grizzly 424-17
order
Check availability with
your rep for other
listed colors.
Square Tile Only Stocked Colors 4mm (3/16”) Thick
24” x 24” Avalanche 424-7 8mm (5/16”) Thick
200 sq. ft. minimum Granite Grey 424-73
order @ 4 sq. ft./Tile Grizzly 424-17
Minimum Orders Check availability
@ 83” Cylinders with your rep for
and @ 72” Cylinders other listed colors
Interlocking Tiles Only Stocked Colors 4mm (3/16”) Thick
24” x 24” Avalanche 424-7 8mm (5/16”) Thick
200 sq. ft. minimum Granite Grey 424-73
order @ 4 sq. ft./Tile Grizzly 424-17
Check availability
with your rep for
other listed colors
950 SERIES Elements 950 Series recycled rubber flooring is built for extreme
95% COLOR | 5% BLACK durability with an average of 95% more color than the 100 Series.
Specifications:
Construction (ISO 2424): SBR Rubber Black + 95% Color
EPDM/Recycled Rubber
Density (ASTM D3676): 60 pcf - 80 pcf
Hardness (ASTM D2240 (Shore A): 60 ± 5
Tear Strength (ASTM D624): 70pli - 80 pli min.
Elongation (ASTM D412): >145% - 300% 01. 04. 07.
Tensile Strength (ASTM D412): 200 psi - >220psi
Flexibility (ASTM F137 1/4” Mandrel): Pass
Resistance to Chemicals (ASTM F825): No Change
Force Reduction (ASTM F2772): 12.9% - 13.7%
Energy Restitution (ASTM F2772): 85% - 86%
Abrasion Resistance (ASTM D3389): <1.7g. 1000 cycles
Static Load Limit (ASTM F970): 0.001’ @ 250 PSI
Coefficient of Friction (ASTM D2047): >0.95 02. 05. 08.
Slip Resistance (ASTM F2772): Pass
VOC Compliant (ASTM D6116 / CA 1350): Yes
Rolling Load (EN1569): Pass
Resistance to Impact (EN1517): 14 N/m
Resistance to Indentation (EN1516): 0.1mm
Vertical Deformation (ASTM F2772): 1.4mm
Indoor Air Quality (CA Spec 01350): Pass
Coefficient of Friction (ASTM D2047): >0.96 03. 06. 09.
LEED-NC MR Credit 4, IEQ Credits 4.1, 5
01. Metal In Mud 424-2 04. Volcanic Ash 424-54 07. Grizzly 424-17
indoor only 02. Avalanche 424-4 05. Gulf Blue 424-51 08. Shooting Star 424-52
03. Granite Grey 424-7 06. Volcanic Flow 424-10 09. Tempe Sunset 424-19
zone
3
Note: The 950 Series has three colors that are STOCKED, all other colors listed are custom
and have minimums, plus longer lead times.
950 Series Recycled Rubber Flooring
90 FLOORING SOLUTIONS THAT SIMPLIFY.
