P. 89

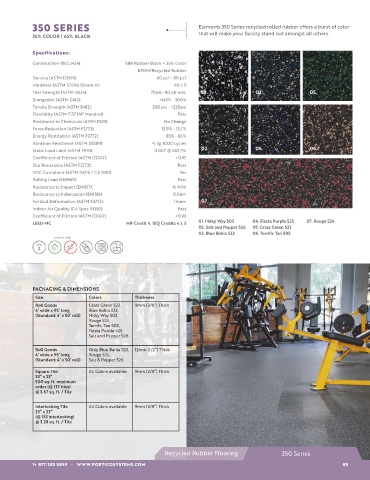

350 SERIES Elements 350 Series recycled rolled rubber offers a burst of color
35% COLOR | 65% BLACK that will make your facility stand out amongst all others.
Specifications:
Construction (ISO 2424): SBR Rubber Black + 35% Color
EPDM/Recycled Rubber
Density (ASTM D3676): 60 pcf - 80 pcf
Hardness (ASTM D2240 (Shore A): 60 ± 5
Tear Strength (ASTM D624): 70pli - 80 pli min. 01. 03. 05.
Elongation (ASTM D412): >145% - 300%
Tensile Strength (ASTM D412): 200 psi - >220psi
Flexibility (ASTM F137 1/4” Mandrel): Pass
Resistance to Chemicals (ASTM F825): No Change
Force Reduction (ASTM F2772): 12.9% - 13.7%
Energy Restitution (ASTM F2772): 85% - 86%
Abrasion Resistance (ASTM D3389): <1.7g. 1000 cycles
Static Load Limit (ASTM F970): 0.001’ @ 250 PSI 02. 04. 06.
Coefficient of Friction (ASTM D2047): >0.95
Slip Resistance (ASTM F2772): Pass
VOC Compliant (ASTM D6116 / CA 1350): Yes
Rolling Load (EN1569): Pass
Resistance to Impact (EN1517): 14 N/m
Resistance to Indentation (EN1516): 0.1mm
Vertical Deformation (ASTM F2772): 1.4mm 07.
Indoor Air Quality (CA Spec 01350): Pass
Coefficient of Friction (ASTM D2047): >0.96
LEED-NC MR Credit 4, IEQ Credits 4.1, 5 01. Milky Way 503 04. Fiesta Purple 525 07. Rouge 524
02. Salt and Pepper 526 05. Grass Green 522
03. Blue Bahia 523 06. Terrific Tan 505
indoor only
zone
3
PACKAGING & DIMENSIONS
Size Colors Thickness
Roll Goods Grass Green 522, 9mm (3/8”) Thick
4’ wide x 95’ long Blue Bahia 523,
(Standard: 4’ x 50’ roll) Milky Way 503,
Rouge 524,
Terrific Tan 505,
Fiesta Purple 525,
Salt and Pepper 526
Roll Goods Only Blue Bahia 523, 12mm (1/2”) Thick
4’ wide x 95’ long Rouge 524,
(Standard: 4’ x 50’ roll) Salt & Pepper 526
Square Tile All Colors available 9mm (3/8”) Thick
23” x 23”
500 sq. ft. minimum
order (@ 137 tiles)
@ 3.67 sq. ft. / Tile
Interlocking Tile All Colors available 9mm (3/8”) Thick
23” x 23”
(@ 153 interlocking)
@ 3.28 sq. ft. / Tile
Recycled Rubber Flooring 350 Series
1+ 877 285 8899 • WWW.PORTICOSYSTEMS.COM 89
