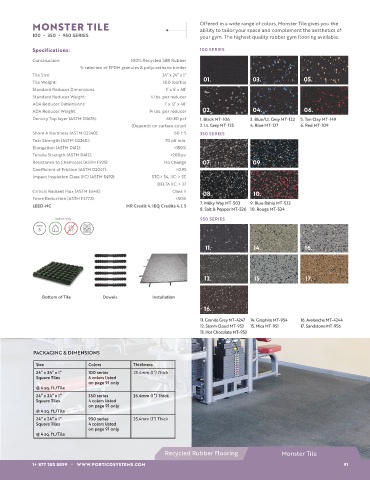

Page 91 - PS_Catalogue2024_020824

MONSTER TILE Offered in a wide range of colors, Monster Tile gives you the
ability to tailor your space and complement the aesthetics of
100 • 350 • 950 SERIES your gym. The highest quality rubber gym flooring available.

Specifications: 100 SERIES
Construction: 100% Recycled SBR Rubber
% selected of EPDM granules & polyurethane binder
Tile Size: 24” x 24” x 1”
Tile Weight: 18.0 lbs/tile 01. 03. 05.
Standard Reducer Dimensions: 1’ x 4’ x 48’
Standard Reducer Weight: 4 lbs. per reducer
ADA Reducer Dimensions: 1’ x 12’ x 48’
ADA Reducer Weight: 14 lbs. per reducer 02. 04. 06.
Density Top layer (ASTM D3676): 60-80 pcf 1. Black MT-106 3. Blue/Lt. Grey MT-122 5. Tan Clay MT-149
(Depends on surface color) 2. Lt. Grey MT-125 4. Blue MT-127 6. Red MT-109
Shore A Hardness (ASTM D2240): 60 ± 5 350 SERIES
Tear Strength (ASTM D2240): 70 pli min.
Elongation (ASTM D412): >150%
Tensile Strength (ASTM D412): >200psi
Resistance to Chemicals (ASTM F925): No Change 07. 09.
Coefficient of Friction (ASTM D2047): >0.95
Impact Insulation Class (IIC) (ASTM E492): STC:> 54, IIC: > 57,
DELTA IIC: > 27
Critical Radiant Flux (ASTM E648): Class II 08. 10.
Force Reduction (ASTM F2772): <50%
LEED-NC MR Credit 4, IEQ Credits 4.1, 5 7. Milky Way MT-503 9. Blue Bahia MT-523
8. Salt & Pepper MT-526 10. Rouge MT-524
indoor only 950 SERIES
zone
3

11. 14. 16.

12. 15. 17.

Bottom of Tile Dowels Installation
16.
11. Granite Grey MT-4247 14. Graphite MT-954 16. Avalanche MT-4244
12. Storm Cloud MT-952 15. Mica MT-951 17. Sandstone MT-956
13. Hot Chocolate MT-953

PACKAGING & DIMENSIONS
Size Colors Thickness
24” x 24” x 1” 100 series 25.4mm (1”) Thick
Square Tiles 6 colors listed
on page 91 only
@ 4 sq. ft./Tile
24” x 24” x 1” 350 series 25.4mm (1”) Thick
Square Tiles 4 colors listed
on page 91 only
@ 4 sq. ft./Tile
24” x 24” x 1” 950 series 25.4mm (1”) Thick
Square Tiles 4 colors listed
on page 91 only
@ 4 sq. ft./Tile

Recycled Rubber Flooring Monster Tile

1+ 877 285 8899 • WWW.PORTICOSYSTEMS.COM 91
