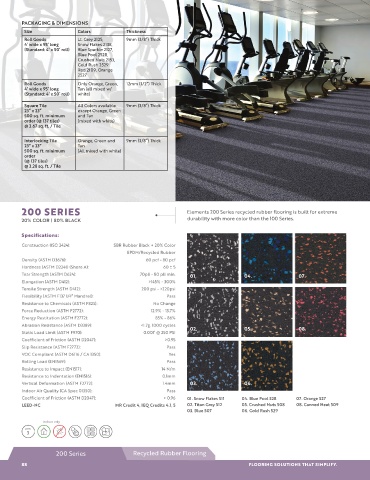

Page 88 - PS_Catalogue2024_020824
P. 88

PACKAGING & DIMENSIONS
         Size              Colors          Thickness
         Roll Goods        Lt. Grey 2125,  9mm (3/8”) Thick
         4’ wide x 95’ long  Snow Flakes 2138,
         (Standard: 4’ x 50’ roll)  Blue Sparkle 2127,
                           Blue Pool 2528,
                           Crushed Nuts 2153,
                           Gold Rush 2529
                           Red 2109, Orange
                           2527
         Roll Goods        Only Orange, Green,  12mm (1/2”) Thick
         4’ wide x 95’ long  Tan (all mixed w/
         (Standard: 4’ x 50’ roll)  white)
         Square Tile       All Colors available   9mm (3/8”) Thick
         23” x 23”         except Orange, Green
         500 sq. ft. minimum   and Tan
         order (@ 137 tiles)  (mixed with white)
         @ 3.67 sq. ft. / Tile

         Interlocking Tile  Orange, Green and   9mm (3/8”) Thick
         23” x 23”         Tan
         500 sq. ft. minimum   (All mixed with white)
         order
         (@ 137 tiles)
         @ 3.28 sq. ft. / Tile






        200 SERIES                                             Elements 200 Series recycled rubber flooring is built for extreme

        20% COLOR | 80% BLACK                                  durability with more color than the 100 Series.

        Specifications:
        Construction (ISO 2424):       SBR Rubber Black + 20% Color
                                           EPDM/Recycled Rubber
        Density (ASTM D3676):                    60 pcf - 80 pcf
        Hardness (ASTM D2240 (Shore A):                60 ± 5
        Tear Strength (ASTM D624):             70pli - 80 pli min.  01.           04.               07.
        Elongation (ASTM D412):                   >145% - 300%
        Tensile Strength (ASTM D412):           200 psi - >220psi
        Flexibility (ASTM F137 1/4” Mandrel):           Pass
        Resistance to Chemicals (ASTM F825):        No Change
        Force Reduction (ASTM F2772):               12.9% - 13.7%
        Energy Restitution (ASTM F2772):             85% - 86%
        Abrasion Resistance (ASTM D3389):       <1.7g. 1000 cycles  02.           05.               08.
        Static Load Limit (ASTM F970):           0.001’ @ 250 PSI
        Coefficient of Friction (ASTM D2047):           >0.95
        Slip Resistance (ASTM F2772):                    Pass
        VOC Compliant (ASTM D6116 / CA 1350):            Yes
        Rolling Load (EN1569):                           Pass
        Resistance to Impact (EN1517):                 14 N/m
        Resistance to Indentation (EN1516):            0.1mm
        Vertical Deformation (ASTM F2772):             1.4mm    03.               06.
        Indoor Air Quality (CA Spec 01350):             Pass
        Coefficient of Friction (ASTM D2047):          > 0.96  01. Snow Flakes 511  04. Blue Pool 528  07. Orange 527
        LEED-NC                        MR Credit 4, IEQ Credits 4.1, 5  02. Titan Grey 512  05. Crushed Nuts 508  08. Canned Heat 509
                                                               03. Blue 507      06. Gold Rush 529
               indoor only
         zone
          3


                    200 Series               Recycled Rubber Flooring
        88                                                                         FLOORING SOLUTIONS THAT SIMPLIFY.
